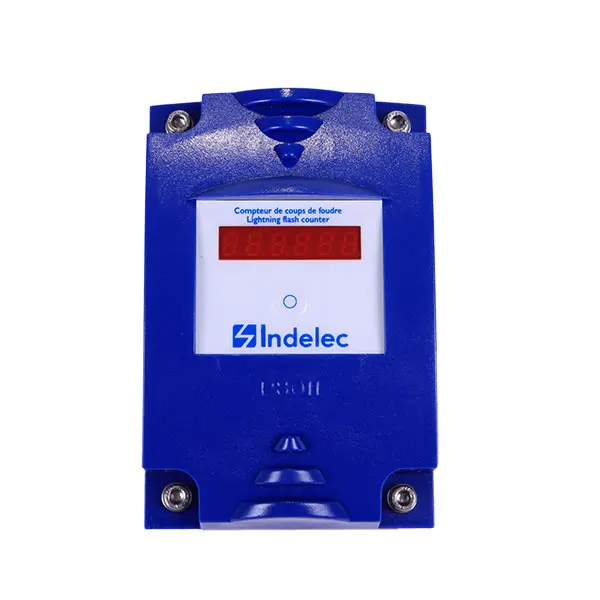

Indelec P8011 Digital Flash Lightning Strike Counter
The Indelec P8011 Digital Flash is a lightning flash counter that keeps a record of every direct lightning strike on an external lightning protection system. It clamps directly onto the down conductor. When lightning current flows through the conductor, the counter registers the strike by induction, which gives a reliable on-site record of how many strikes the installation has taken.
Why a Lightning Strike Counter Matters
Lightning protection systems must be inspected after a lightning strike. A counter shows exactly when the system has been hit, so maintenance teams know when an inspection is due. The P8011 is the ideal companion for installations protected by an Indelec Prevectron® 3 Early Streamer Emission air terminal:
- Prevectron 3 S40 (P1523): 40 µs advance time, for medium-sized buildings
- Prevectron 3 S50 (P1533): 50 µs advance time, for larger buildings and industrial sites
- Prevectron 3 S60 (P1543): 60 µs advance time, for the largest protected areas
Detection and Display
The P8011 detects lightning currents from 1 kA up to 100 kA, and the running count is shown on a 6-digit digital display. It is powered by replaceable lithium batteries (Indelec ref. P8017). Its IP67-rated enclosure is designed for permanent outdoor installation on the down conductor.
On-Site Testing
The counter can be checked on site with Indelec’s dedicated tester (ref. P8015), so its operation can be confirmed during routine inspections.
Which Indelec Counter Do You Need?
- P8011 Digital Flash: counts total strikes on a 6-digit display. A simple, reliable choice for most installations.
- P8016 Advanced Flash: also records the date, time, peak current and polarity of each strike.
- P8050 RFID Flash: battery-free, read contactlessly with an Android app.
P8011 Technical Data
| Specification | Value |
|---|---|
| Manufacturer | Indelec |
| Part number | P8011 |
| Product | Digital Flash Lightning Counter |
| Detection principle | Induction, on the down conductor |
| Minimum detectable current | 1 kA |
| Maximum detectable current | 100 kA |
| Display | Digital, 6 digits |
| Power supply | Replaceable lithium batteries (ref. P8017) |
| Degree of protection | IP67 |
| Mounting | Specific clamp on down conductor (included) |
| Net weight | 0.700 kg |
| On-site tester | Ref. P8015 |
| Standard | IEC 62561-6 (formerly EN 50164-6) |
Buy the Indelec P8011 from Atlantech Drives
Atlantech Drives supplies genuine Indelec lightning protection products worldwide, including lightning flash counters and Prevectron® ESE air terminals. Our sales team can confirm availability, lead time and pricing for your order. Request a quote today for fast international shipping.
Product status: Active, listed as a current product by Indelec.
